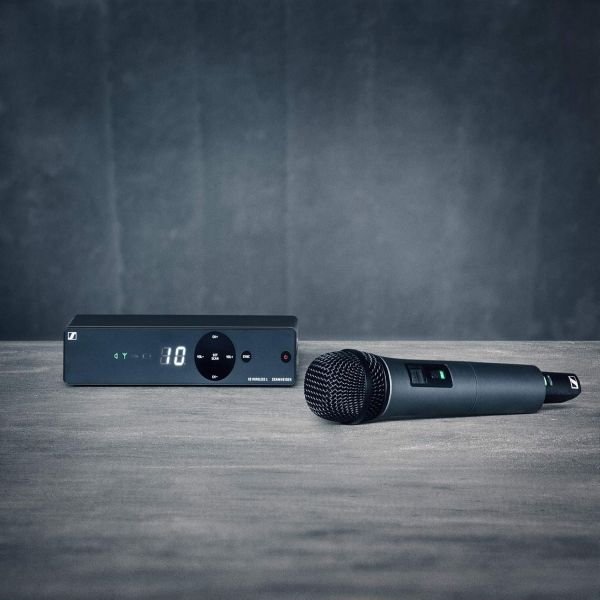

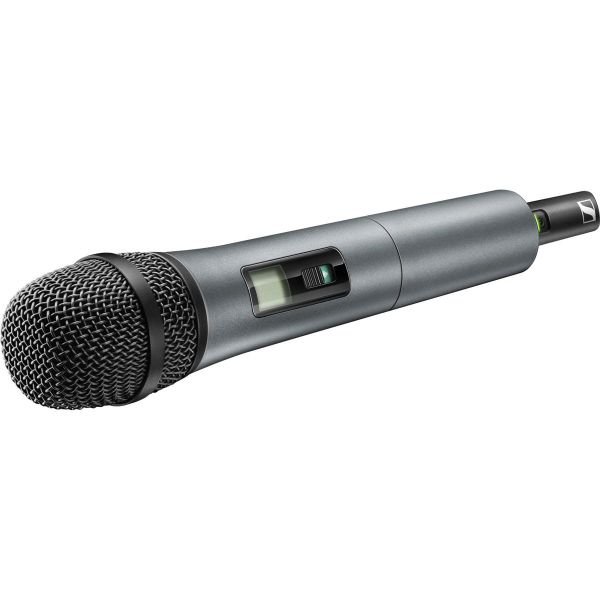

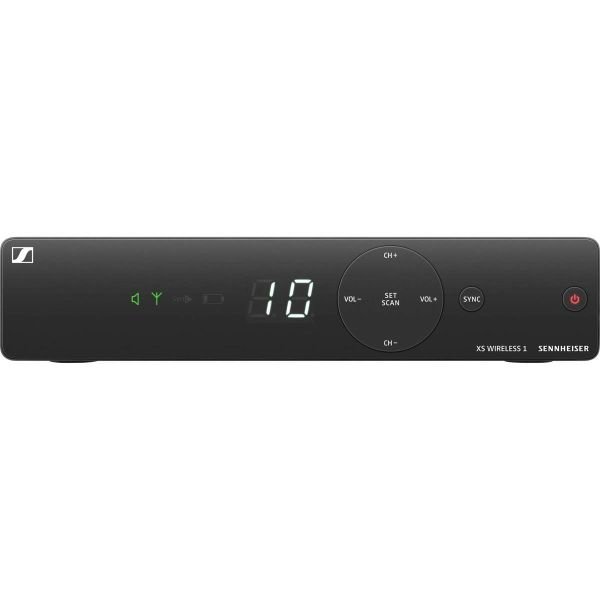

Overview Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp. FEATURES Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835) Antenna-switching diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Dimensions: approx. 200 x 42 x 127 mm THD, total harmonic distortion: ≤ 0.9% Pick-up pattern: cardioid Signal-to-noise ratio ≥ 103 dBA RF output power: 10 mW Switching bandwidth: up to 24 MHz Operating time: approx. 10 hrs Modulation: wideband FM Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Housing: rugged ABS housing Dynamic range: dynamic Frequency: 8 frequency banks, each with up to 10 factory-preset channels Frequency range: A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz Sensitivity: < 3 μV at 52 dB(A)rms S/N Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity: 1.5 mV / Pa Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps Audio adjustment range: 45 dB, adjustable in 5-dB steps Line / Mic level: 20 dB, switchable Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C Receiver Principle: double superheterodyne Diversity principle: Antenna switching diversity via internal antennas
