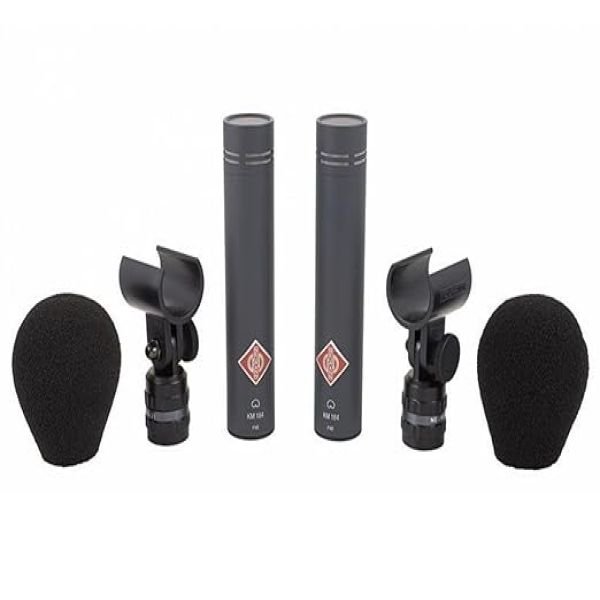

The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications. Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in ma
Features: Miniature microphone for all typical studio applications Successor of the worldwide successful KM 84 Transformerless circuitry Specifications: Acoustical operating principle: Pressure gradient transducer Directional pattern: Ccardioid Frequency range: 20 Hz ... 20 kHz Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa Rated impedance: 50 ohms Rated load impedance: 1 kohms Equivalent noise level, CCIR1): 22 dB Equivalent noise level, A-weighted1): 13 dB-A Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB Maximum SPL for THD 0.5%2): 138 dB Maximum output voltage: 10 dBu Supply voltage (P48, IEC 61938): 48 V ± 4 V Current consumption (P48, IEC 61938): 3.2 mA Matching connectors: XLR 3F Weight: Approx. 80 g Diameter: 22 mm Length: 107 mm
