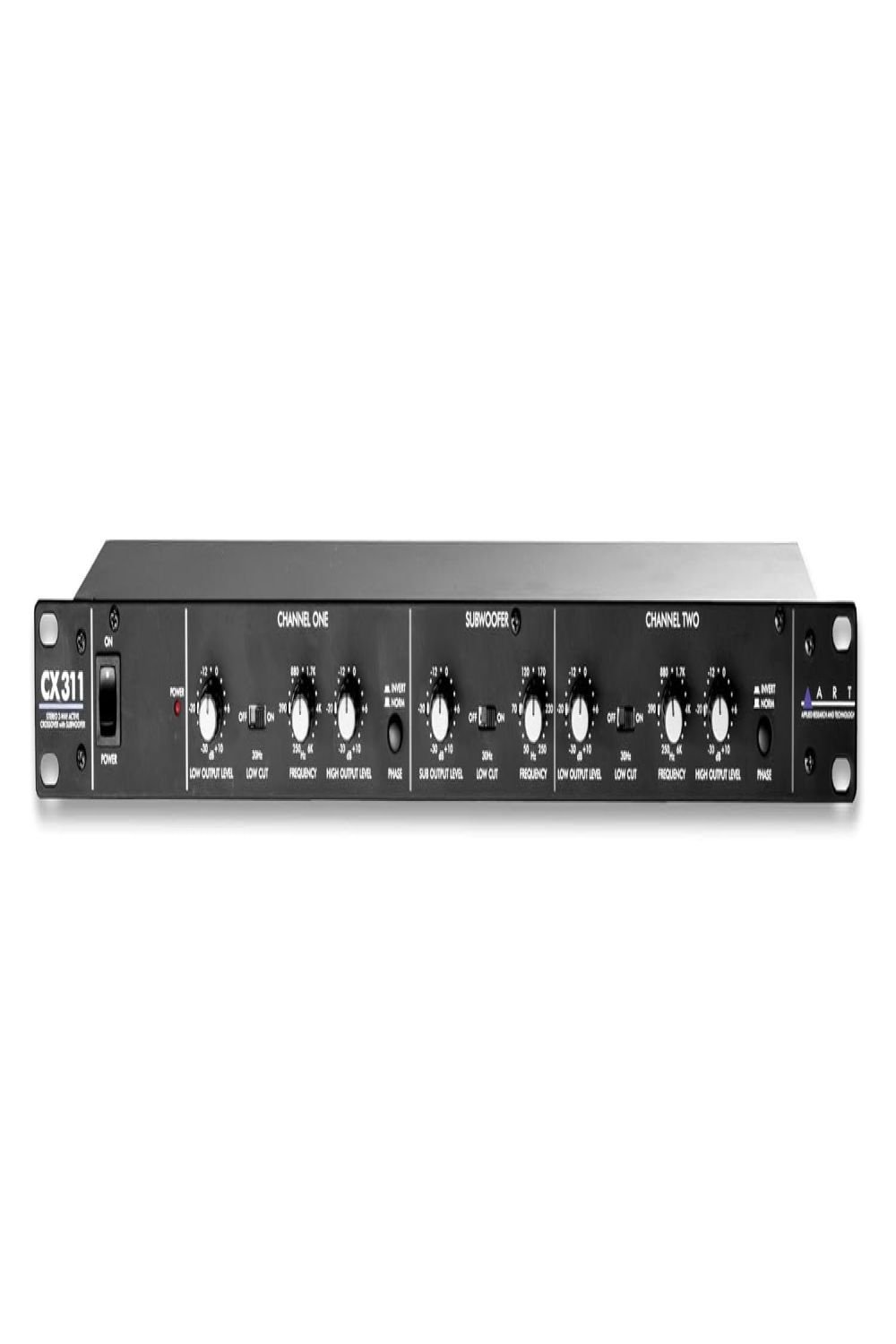

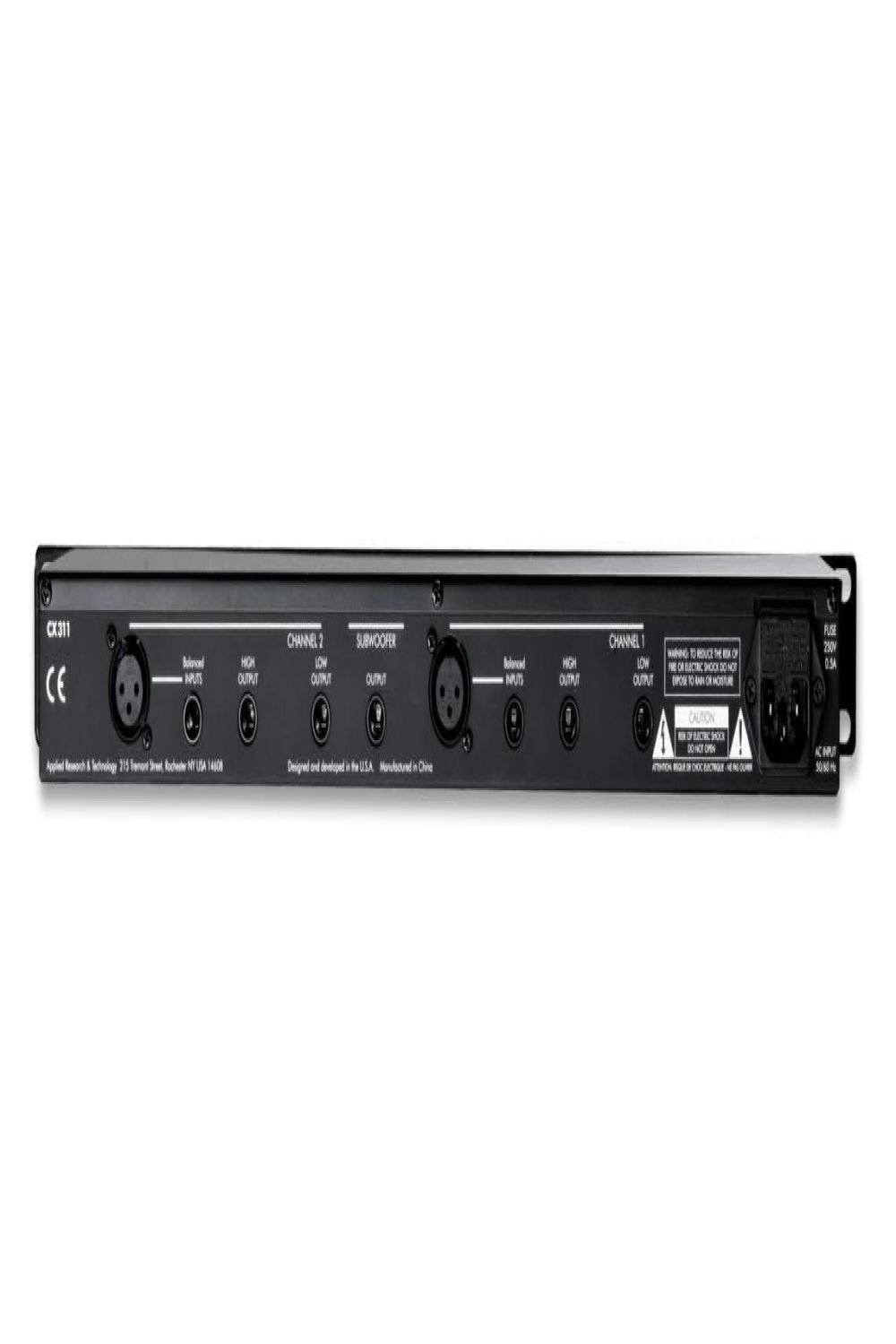

ART CX311 2way Crossover with Subwoofer Out Overview: The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region. Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz) All three outputs have a 30 cycle low cut switch to eliminate low-end rumble. The subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range Features: Stereo two-way crossover Subwoofer output Fourth-order Linkwitz-Riley filters (24dB / octave state-variable) Independent high and low output level controls Crossover frequency rotary control (250hz to 6khz) 30 cycle low cut switch Independent output level and rotary control (50hz to 250hz) Specifications: Dimensions: 1.75”H x 19”W x 5.5”D Weight: 4.85 lbs. (2.2 kg) Input Connections: XLR, ¼” TRS, balanced Output Connections: ¼”TS, unbalanced Input Impedance: 100K ohms Output Impedance: 220 ohms Maximum Input Level: +21dBu Maximum Output Level: +21dBu CMRR: >75dB (typical @ 1kHz) Frequency Response: 10Hz to 40kHz, +/-.5dB Signal to Noise Ratio: >95dB, Ref: 0dBu ; 20Hz to 20kHz, unweighted Dynamic Range: >114dB Total Harmonic Distortion: <0.01% (20Hz-20kHz,0dBu) Crossover Filter Type: Fourth-order Linkwitz-Riley, 24dB/octave, state-variable Crossover Frequency Range: 250Hz to 6kHz Subwoofer Filter Type: Two-pole Butterworth, 12dB/ octave Subwoofer Frequency Range: 50Hz to 250Hz.
